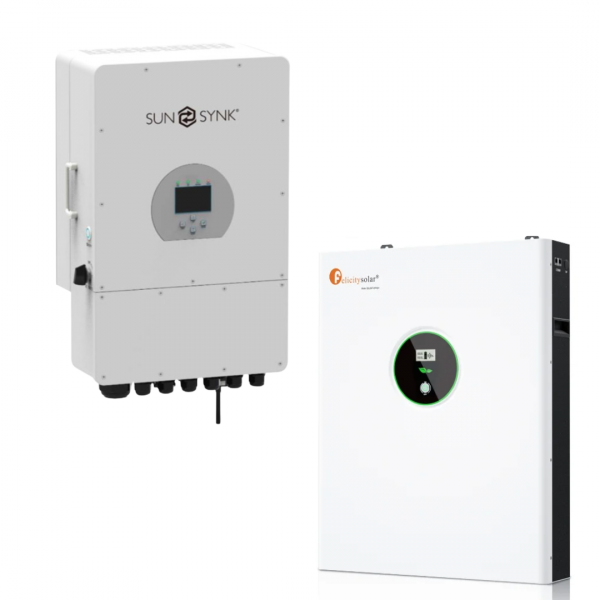

This Combo Consists of the following:

• 1 x 5kva Sunsynk

• 1 x 10.2kwh Felicity Lithium Battery



Sunsynk 5kW, 48Vdc Single Phase Hybrid Inverter with WIFI included

• flow from multiple sources such as solar, mains grid, battery, and generator.



Delivery and Packaging are to be calculated on request.

Product Features:



Product Features:



• Compatible with a wide range of lithium-ion and lead-acid batteries

• Mobile App for monitoring

• IP65 rated

• Automatic switching from grid-tied to off-grid mode

• Zero export power capability

• 16 x units can be paralleled in a single installation

• Essential and non-essential loads outputs

• Wi-Fi dongle (for remote monitoring) and CT-clamp as standard

• Battery Voltage – 48Vd.c (40Vd.c ~ 60Vd.c)



Specifications:



• Sunsynk-5.5-K-SG01LP1

• Weight:25 kg

• Rated Power: – 5,000W

• Min PPT Voltage:  –  125 V

• Max PPT Voltage:  –  425 V

• DC Startup Voltage:  –  150 V

• DC Shutdown Voltage:  –  150 V

• Max Input Voltage:  –  500 V

• Max DC Power:  –  6,500 W

• Max AC Power (5 Minutes):  –  5,500 W

• Surge AC Power (1 Second):  –  11,000 W

• Max DC Current:  –  22 A

• Max DC Inputs:  –  2

• Connector:  –  MC4

• Included Connectors:  –  0

• Euro Efficiency:  –  96.5 %

• Transformer:  –  None

• MPPT Quantity :  –  2

• Has Integrated DC Switch:  –  Yes

• All new Sunsynk Inverters come with the new data logger.



Felicity LiFePO4 Lithium Battery 10 kwh with LCD Display



Product Features:

The Felicity LiFePO4 Lithium Battery 10kwh with LCD Display is designed to optimize residential and commercial solar performance. The innovative LCD Display lithium battery offers high-density energy, along with a manufacturer 7-year warranty for extra peace of mind. This lithium-ion battery also includes a built-in Battery Management System (BMS) that further improves functionality and safety. This solar battery pack’s design is perfect for homes, residential apartments and commercial spaces, and it can be easily expanded by connecting in parallel with extra battery packs.



Specifications:



• Model: LPBA48200

• Usable Energy: 10KWh

• Capacity: 200Ah

• Nominal Voltage: 51.2V

• Voltage Range: 48-57.6V

• Max Charge & Discharge Current: 150A@120S

• Recommend Charge & Discharge Current: ≤120A

• Max Output Power: 7500W

• Recommend Output Power: ≤6000W

• Scalable: 1~12 in parallel

• Communication: CAN & RS485

• Working Temperature Range: Discharge:-20~ 60℃，Charge:0 ~ +55℃

• Compatible Inverters:

• Felicitysolar/Deye/Luxpower/Growatt/Voltronic/Sunsynk/Megarevo/Victron/SRNE/Solis/MPPsolar/Afore/SOFAR/CHISAGE ESS

• Cycle Life: ＞6,000 Cycle@ 80% DOD / 25℃ / 0.5C, 60%EOL.

• Net Weight: 70.5KG

• Gross Weight: 91KG

• Product Dimension: [W x D x H] 755*600*160mm

• Package Dimension: [W x D x H] 855*700*340mm.

• Warranty: 7years



Warranties

:
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. The installation must be compliant with SANS 10142 and ALL its parts. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
